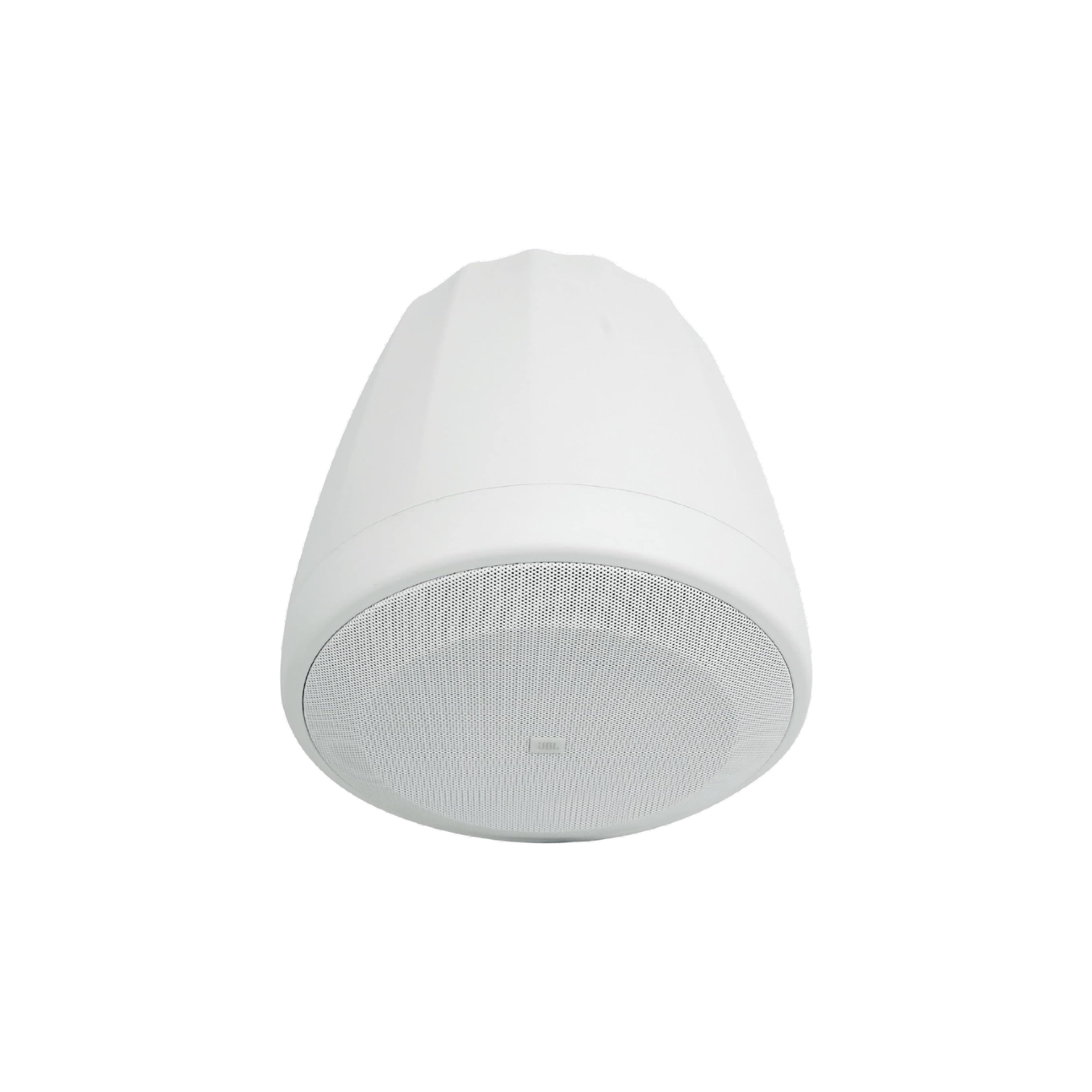

JBL Control 68HP

General Specifications

Frequency Range (-10dB)

52 Hz – 17 kHz

Frequency Response (+/-3 dB)

72 Hz – 16 kHz

Power Rating

150 Watts Continuous Pink Noise Power (600 Watts peak, 100 hrs) ; 250 Watts Continuous Pink Noise Power (1000 Watts peak, 2 hrs) ; 500 Watts Continuous Program Power (2 hr)

Sensitivity

90 dB

Maximum SPL

114 dB continuous pink noise, 120 dB peak

Coverage Angle

110° conical

Directivity Factor (Q)

7.8

Directivity Index (DI)

8.9 dB

Nominal Impedance

8?

Transformer Taps

70V = 68W, 34W, 17W, & 8.5W ; 100V = 68W, 34W, 17W

Drivers

209 mm (8 in) Kevlar(tm) reinforced cone, 50 mm (2 in) CCAW voice coil on fiberglass voice coil former ; 25 mm (1.0 in) compression driver, titanium dome, ferrite magnet assembly, Kapton(tm) voice coil former, CCAW voice coil on fiberglass voice coil former

Terminals

Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

Enclosure Material

High impact polystyrene

Dimensions

Dimensions

333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket

Net Weight

7.5 kg (16.5 lbs)

Shipping Weight

17.2 kg (38.0 lbs)
