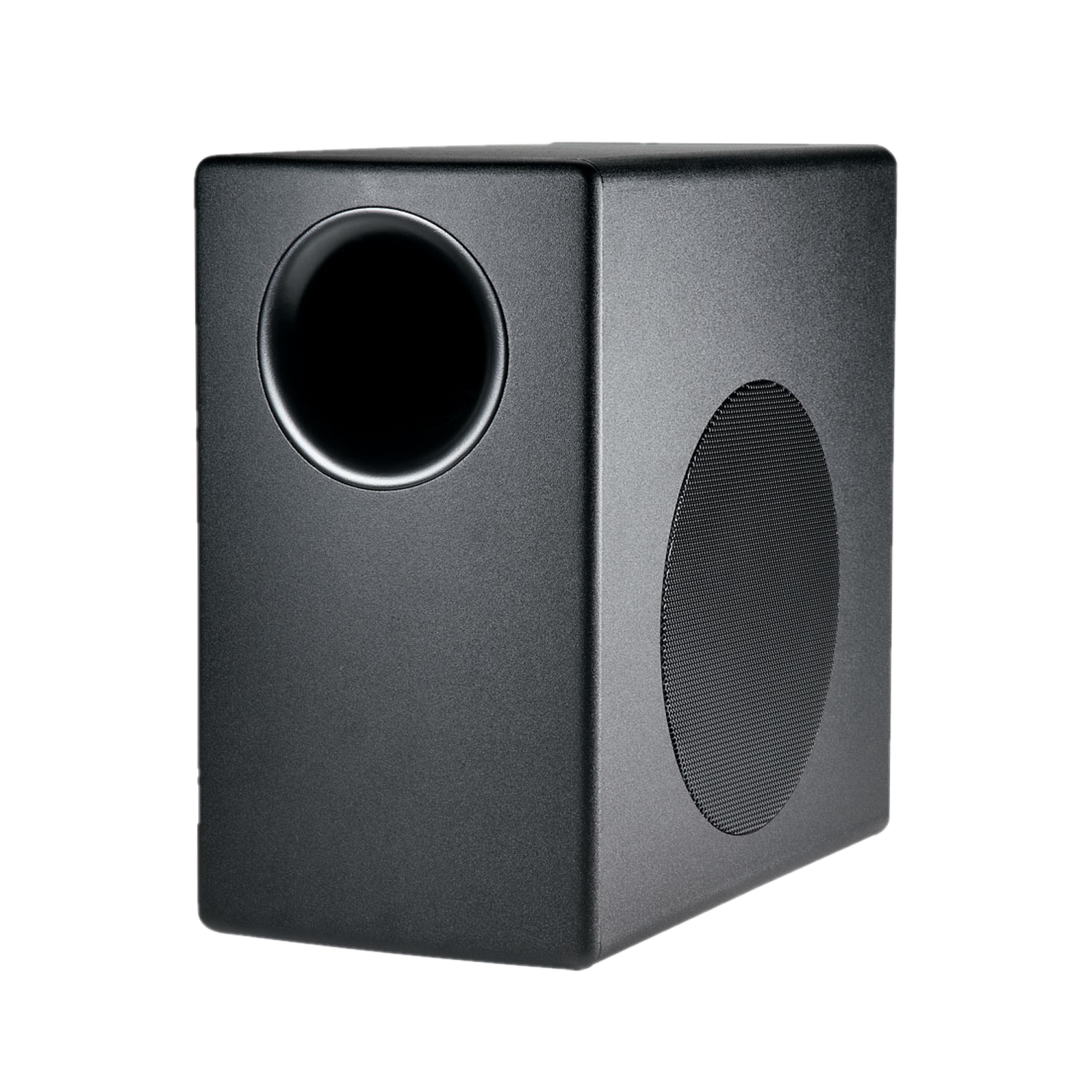

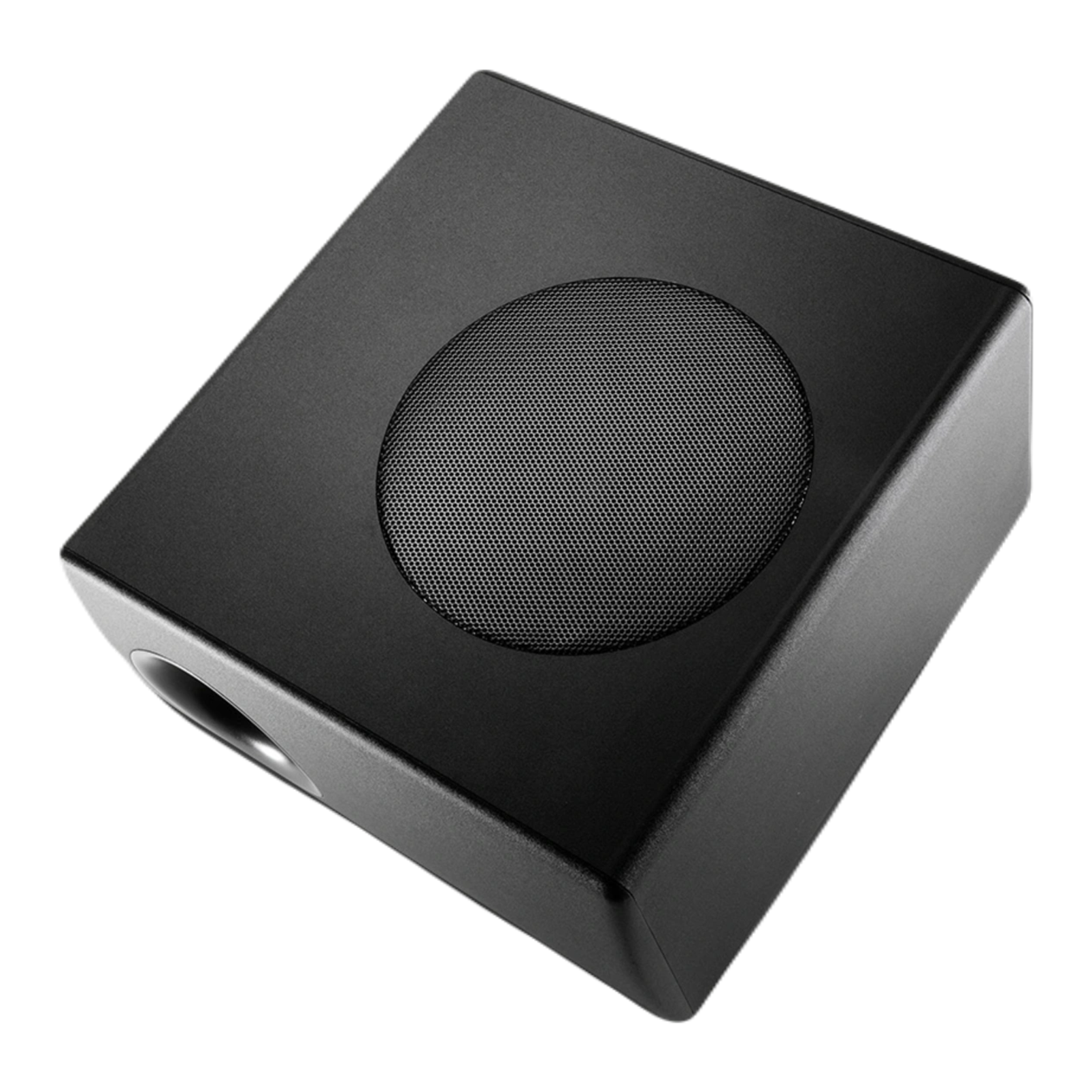

JBL Control 50S/T

General Specifications

Frequency Range (-10dB)

32 Hz – 200 Hz

Frequency Response (±3 dB)

50 Hz – 150 Hz

Power Capacity

300 Watts Continuous Program Power (2 hrs) ; 150 Watts Continuous Pink Noise (2 hrs) ; 200 Watts Continuous Program Power (100 hrs) ; 100 Watts Continuous Pink Noise (100 hrs)

Sensitivity

95 dB (near corner), 89 dB (center of wall)

Maximum SPL (1m)

115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)

Impedance

8 ohms (in bypass/thru mode)

Transformer Taps

80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru

Drivers

200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former

Input Connectors

Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm)

Enclosure

Enclosure Structural plywood. Port & terminal panels

Top, bottom, front & bottom

Mounting Hardware

2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel

Included Accessories

Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.

Grille

Zinc-plated steel

Coverage Angle

Omnidirectional

Dimensions

Dimensions (H x W x D)

Dimensions (H x W x D) 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket

Cabinet

Net Weight (each)

9.0 kg (20 lbs)

Shipping Weight

10.2 kg (23 lbs)
