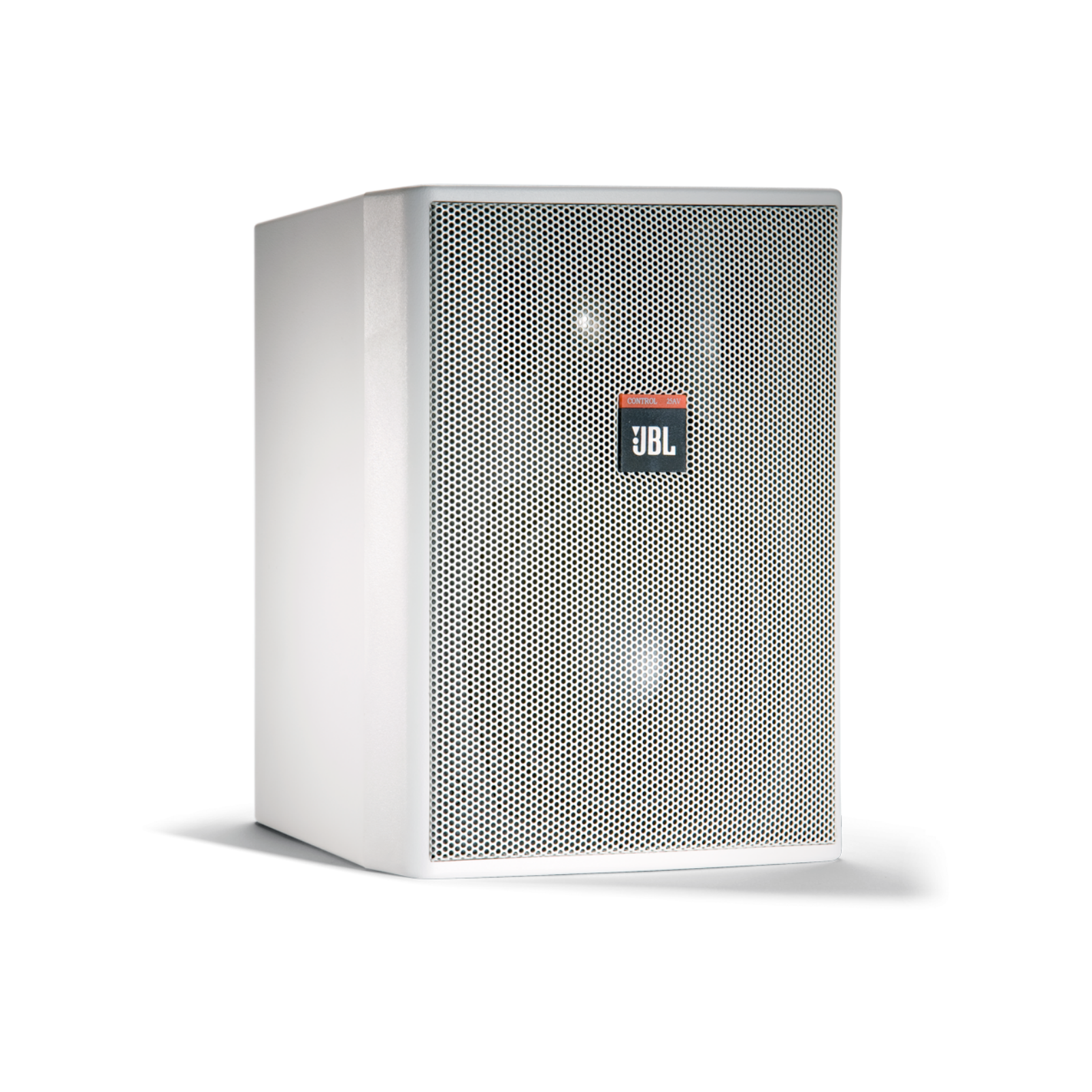

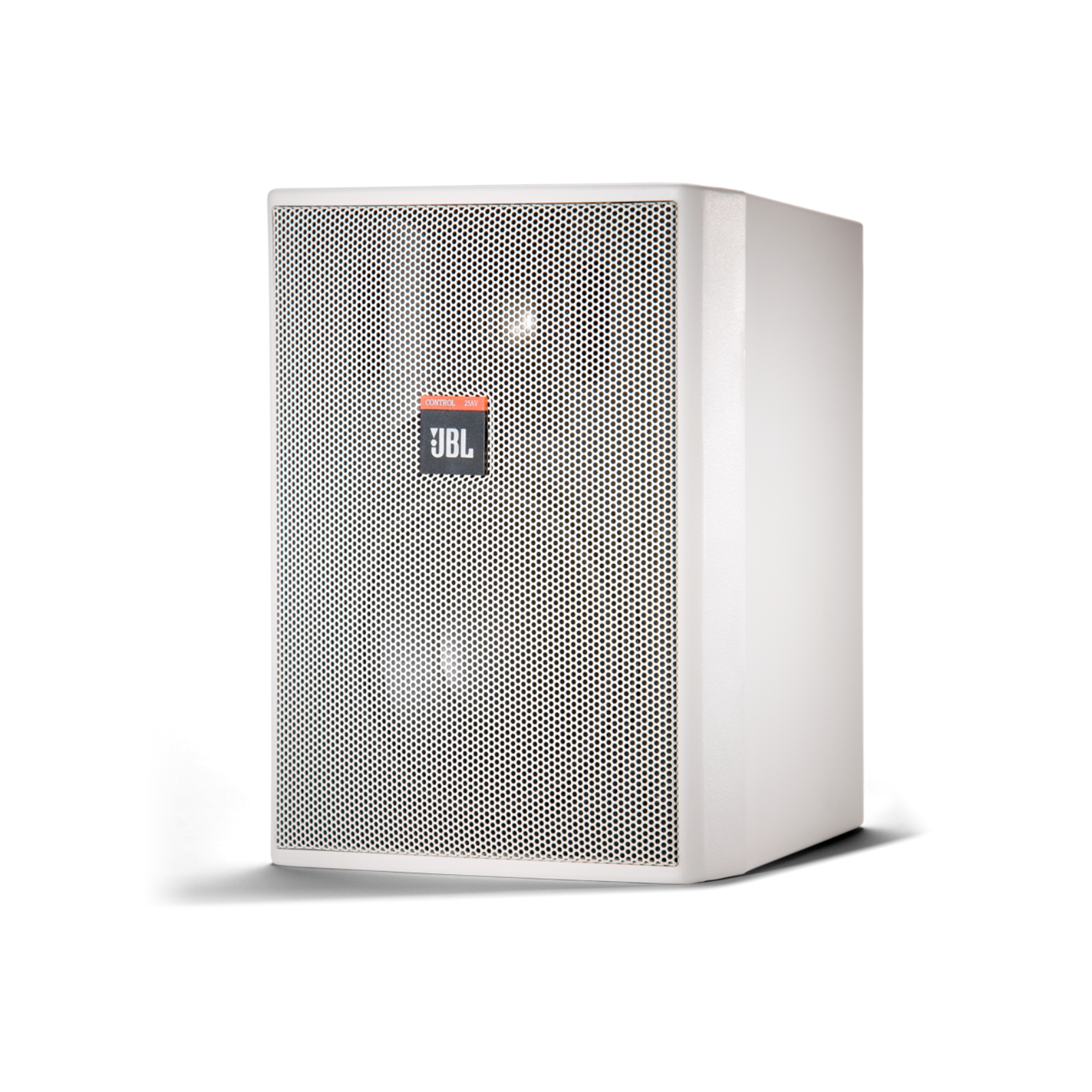

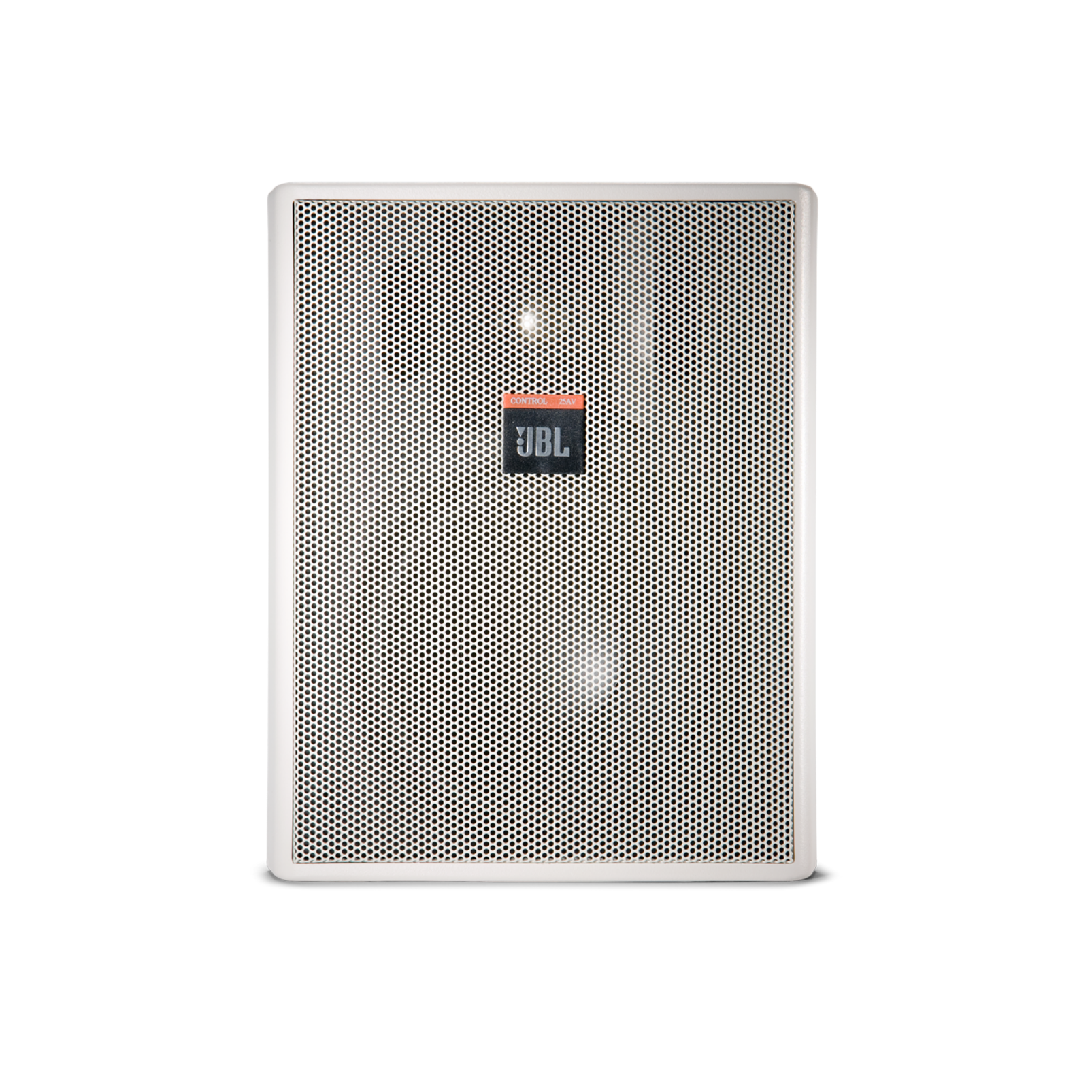

JBL Control 25AV

General Specifications

Frequency Range (-10 dB)

70 Hz – 23 kHz

Midrange (±1.5 dB, typical)

130 Hz – 14 kHz

100 Hr Power Capacity

200 Watts Continuous Program Power ; 100 Watts Continuous Pink Noise

Nominal Coverage

100° x 100°

Nominal Sensitivity

87 dB SPL, 1W @ 1 m (3.3ft)

Maximum SPL @ 1m

113 dB continuous peak pink noise ; 107 dB continuous average pink noise ; 103 dB continuous average music or speech

Directivity Factor (Q)

4.9, averaged 500 Hz to 4 kHz

Directivity Index (DI)

6.9 dB, averaged 500 Hz to 4 kHz

Nominal Impedance

8 ohms

Minimum Impedance

6.7 ohms at 230 Hz

Crossover Type

Second Order Lowpass, Second Order Highpass, Complex Optimization for Maximally Flat Response

Transformer Taps

170V = 60W, 30W, 15W, 7.5W taps (Taps #4,#3, #2 & #1) ; 100V = 60W, 30W, 15W taps (Taps #3, #2, & #1) ; Thru position = 8 ohms nominal

Low Frequency Transducer

130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former

High Frequency Transducer

20 mm (.75 in) titanium coated PEI

Included Accessories

1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench

Optional Accessories

MTC-25V for vertical columnar mounting of up to 3 speakers ; MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage. ; MTC-28/25CM to install speaker down from the ceiling. Check JBL Control Contractor Bracket and Adapter Handbook. ; MTC-xxWMG WeatherMax? Stainless Steel Grille with a three-layer backing, including vapor barrier to break up driving precipitation. Available in black or white (-WH).

Dimensions

Dimensions (H x W x D)

236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)

Net Weight (ea)

4.0 kg (9 lbs)

Shipping Weight (pair)

9.0 kg (20 lbs) per pair

Design

Enclosure Material

High Impact polystyrene

Grille

Painted stainless steel, black or white to match cabinet, paintable

Overload Protection

Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition

Environmental

Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating

Termination

Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)

Safety Agency Rating

Transformer is listed per UL1876

Rotation

Rotation 37° vertical 44° horizontal On bracket

Against wall on InvisiBall Base
