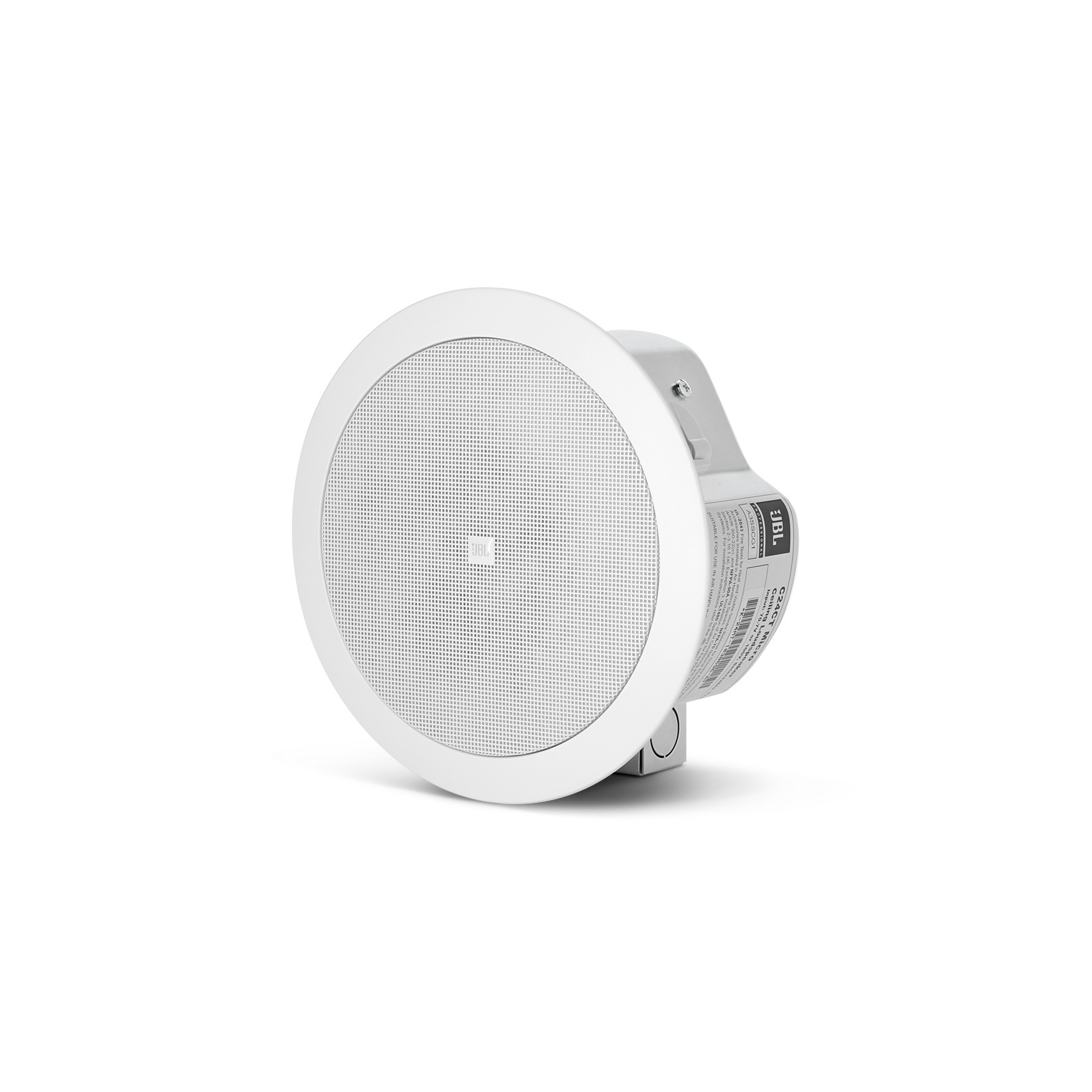

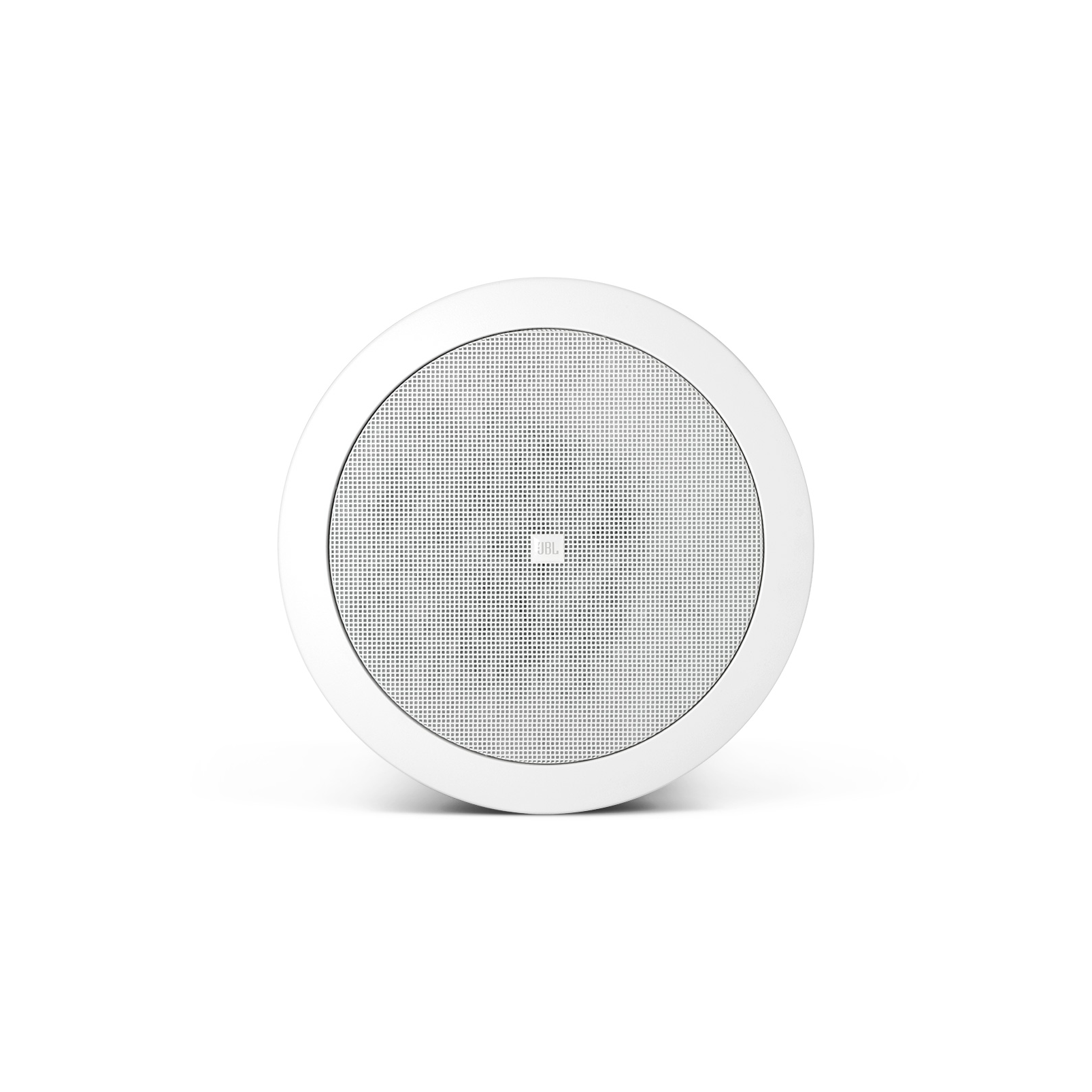

JBL Control 24C Micro (B-Stock)

General Specifications

Frequency Range

85 Hz – 25 kHz

Power Capacity

30 Watts Continuous Program Power ; 15 Watts Continuous Pink Noise

Nominal Sensitivity

86 dB SPL @ 1 m (3.3 ft)

Crossover Frequency

3.5 kHz

Rated Maximum SPL

98 dB @ 1 m (3.3 ft)

Nominal Impedance

7.1 ohms

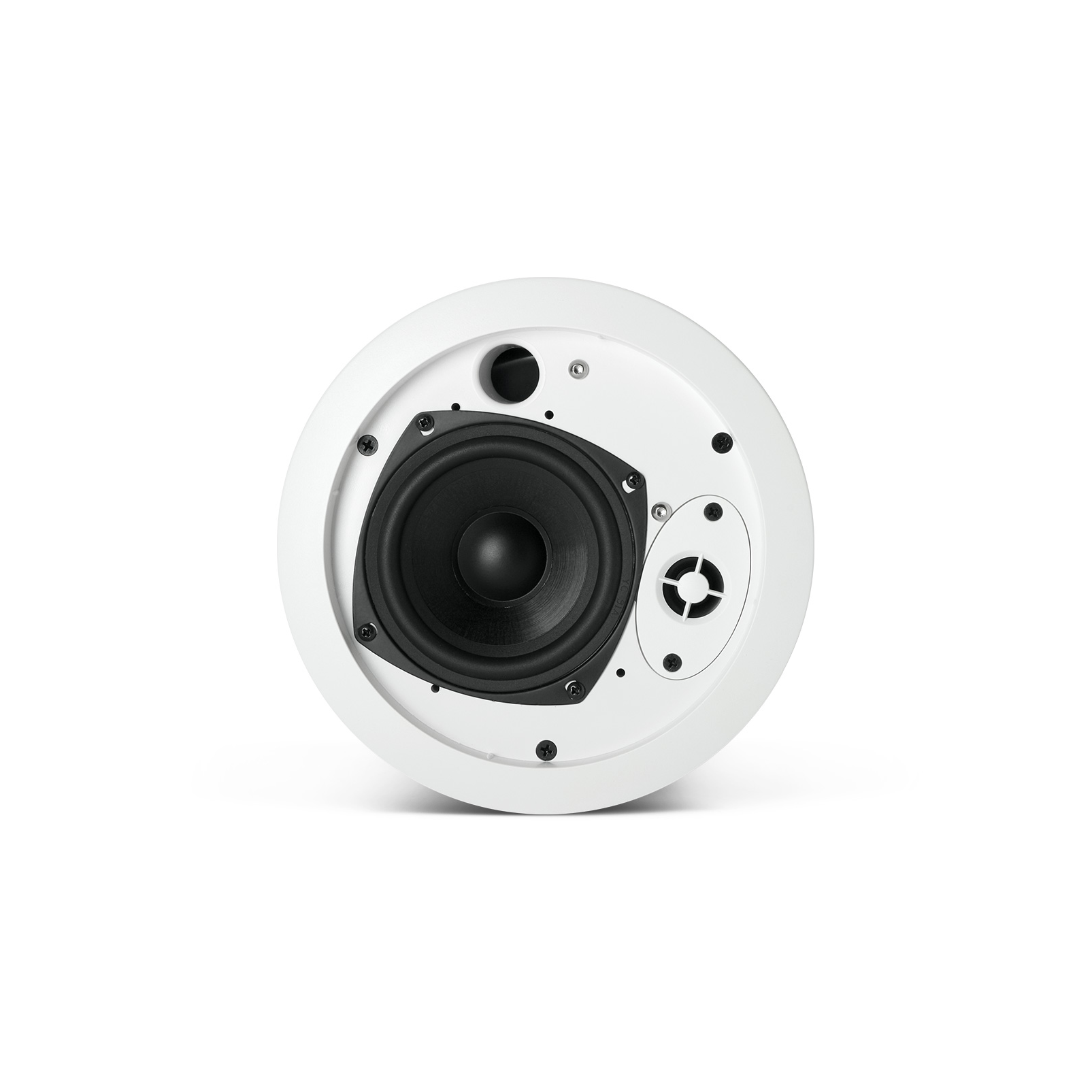

Low Frequency Transducer

115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voicecoil

High Frequency Transducer

12 mm (0.5 in) polycarbonate

Included Accessories

C-shaped support backing plate ; 2 tile support rails (fits both 2 ft and 600 mm tiles) ; Cutout template, cardboard

Optional Accessories

MTC-24TR trim ring for retrofit installations ; MTC-24NC optional new construction bracket, flat ; MTC-24MR optional mud ring construction bracket

Dimensions

Outside Dimensions (H x Dia)

106 x 195 mm (4.2 x 7.7 in) ; 105 mm (4.1 in) front of ceiling tile to back of the backcan

Cutout Size

167 mm (6.6 in)

Net Weight (ea)

1.6 kg (3.6 lb)

Shipping Weight (pr)

3.6 kg (7.9 lb)
