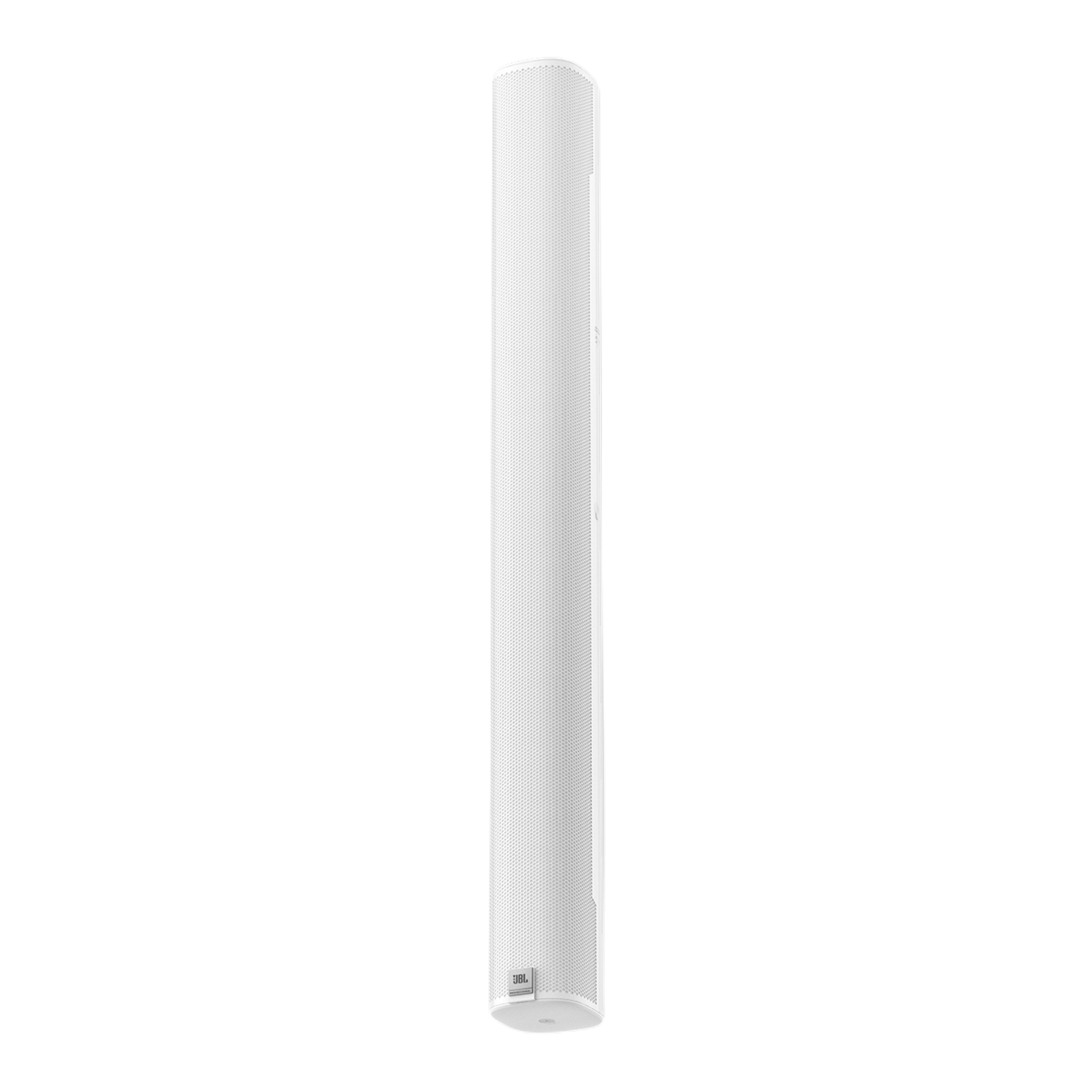

JBL COL800

General Specifications

Frequency Range (-10 dB)

85 Hz – 20 kHz

Frequency Response (+/-3 dB)

125 Hz – 18 kHz

Power Rating (8? setting)

300W Continuous Program (2 hrs) ; 150W (600W peak) Continuous Pink Noise (2 hrs) ; 100W (400W peak) Continuous Pink Noise (100 hrs)

Sensitivity (2.83V @ 1m)

88 dB

Coverage Pattern

Vertical 60° [1kHz-4 kHz average] ; 10° down-tilt to aiming access for +20°/-40° coverage in relation to physical cabinet aim ; Horizontal 160° [1kHz – 4 kHz average]

Directivity (Q)

8.1

Directivity Index (DI)

9.1 dB

Rated Maximum SPL

110 dB Continuous (116 dB peak) @ 1m

Nominal Impedance

8? (in Thru/direct mode)

Minimum Impedance

7.0 Ω@ 290 Hz

Transformer Taps

60W, 30W, 15W @ both 70V & 100V (plus 7.5W @ 70V), and 8? thru, selectable via switch

Transformer Insertion Loss

Less than 1 dB for all taps

Maximum Input Voltage

33 V RMS (2 hrs), 66 V peak

Recommended Protective High-Pass

75 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (60W, 30W, 15W and 7.5W)

Drivers

Four 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers ; Two 20 mm (0.8 in.) tweeters (tweeters located at top of array for better coverage of listening space)

Dimensions

Dimensions (H x W x D)

800 x 102 x 93 mm (31.5 x 4.1 x 3.7 inches)

Net Weight

5.2 kg (11.5 lbs) each

Shipping Weight

6.4 kg (14.0 lbs) each (packed 1 speaker per carton)
