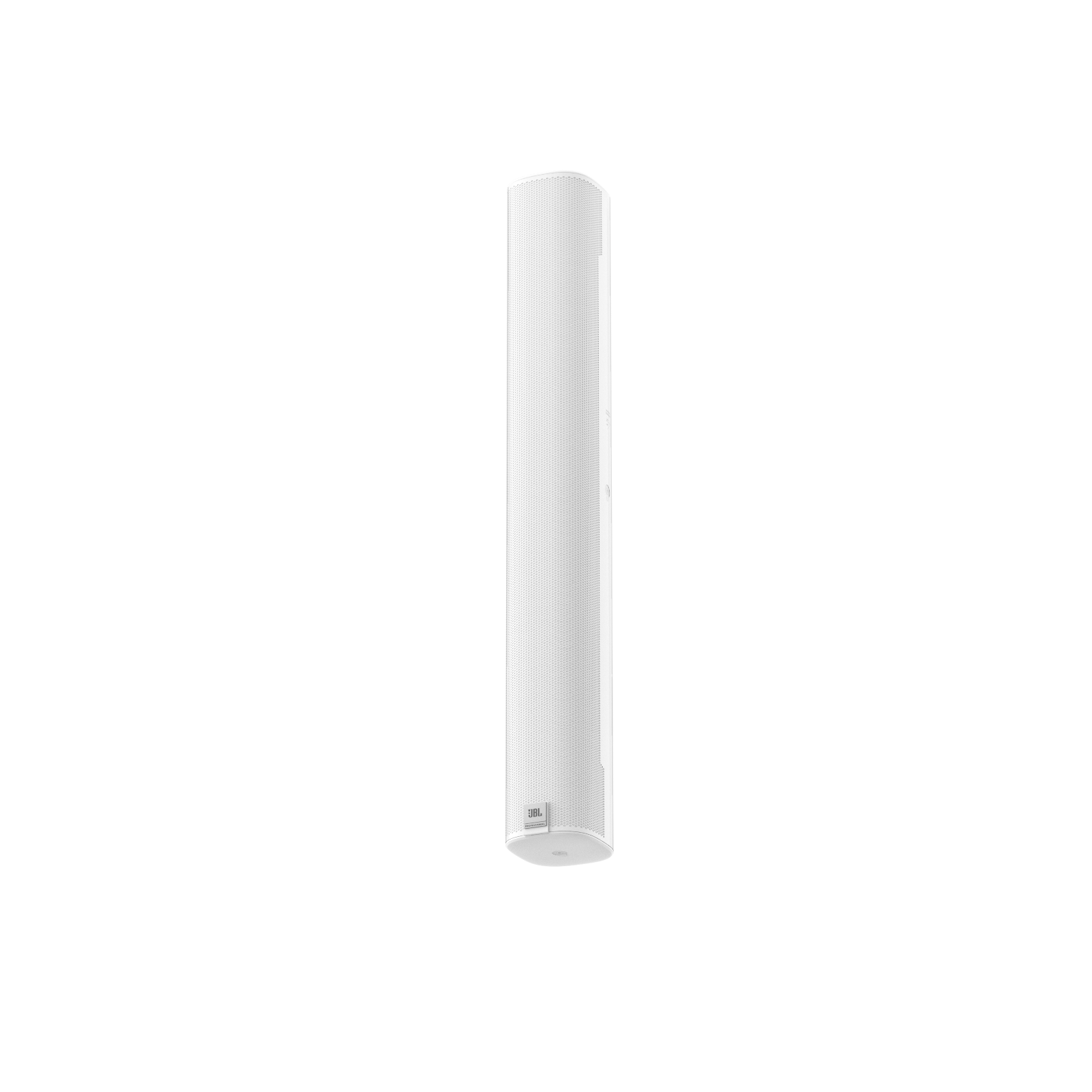

JBL COL600 (B-Stock)

General Specifications

Frequency Range (-10 dB)

70 Hz – 20 kHz

Frequency Response (+/-3 dB)

105 Hz – 20 kHz

Power Rating (8? setting)

160W Continuous Program (2 hrs) ; 80W (320W peak) Continuous Pink Noise (2 hrs) ; 60W (240W peak) Continuous Pink Noise (100 hrs)

Sensitivity (2.83V @ 1m)

86 dB

Coverage Pattern

Vertical 110° [1kHz-4 kHz average] ; 10° down-tilt to aiming access for +45°/-65° coverage in relation to physical cabinet aim ; Horizontal 160° [1kHz – 4 kHz average]

Directivity (Q)

7.8

Directivity Index (DI)

8.9 dB

Rated Maximum SPL

105 dB Continuous (111 dB peak) @ 1m

Nominal Impedance

8? (in Thru/direct mode)

Minimum Impedance

7.0 Ω@ 275 Hz

Transformer Taps

20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8? thru, selectable via switch

Transformer Insertion Loss

Less than 1 dB for all taps

Maximum Input Voltage

21 V RMS (2 hrs), 42 V peak

Recommended Protective High-Pass

70 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W)

Drivers

Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers ; One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)

Dimensions

Dimensions (H x W x D)

598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches)

Net Weight

3.5 kg (7.8 lbs) each

Shipping Weight

4.5 kg (10.0 lbs) each (packed 1 speaker per carton)
