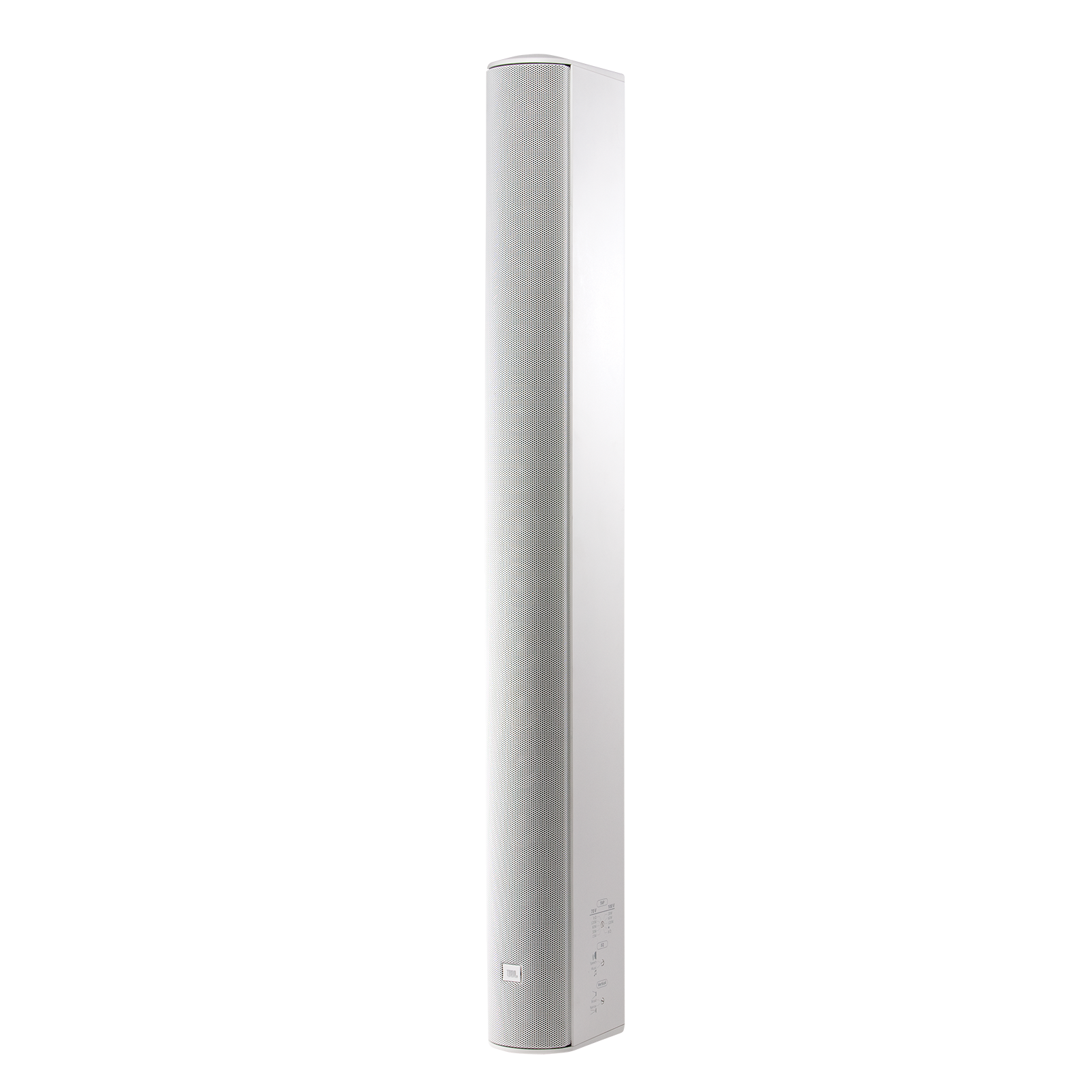

JBL CBT 100LA-LS

General Specifications

Components

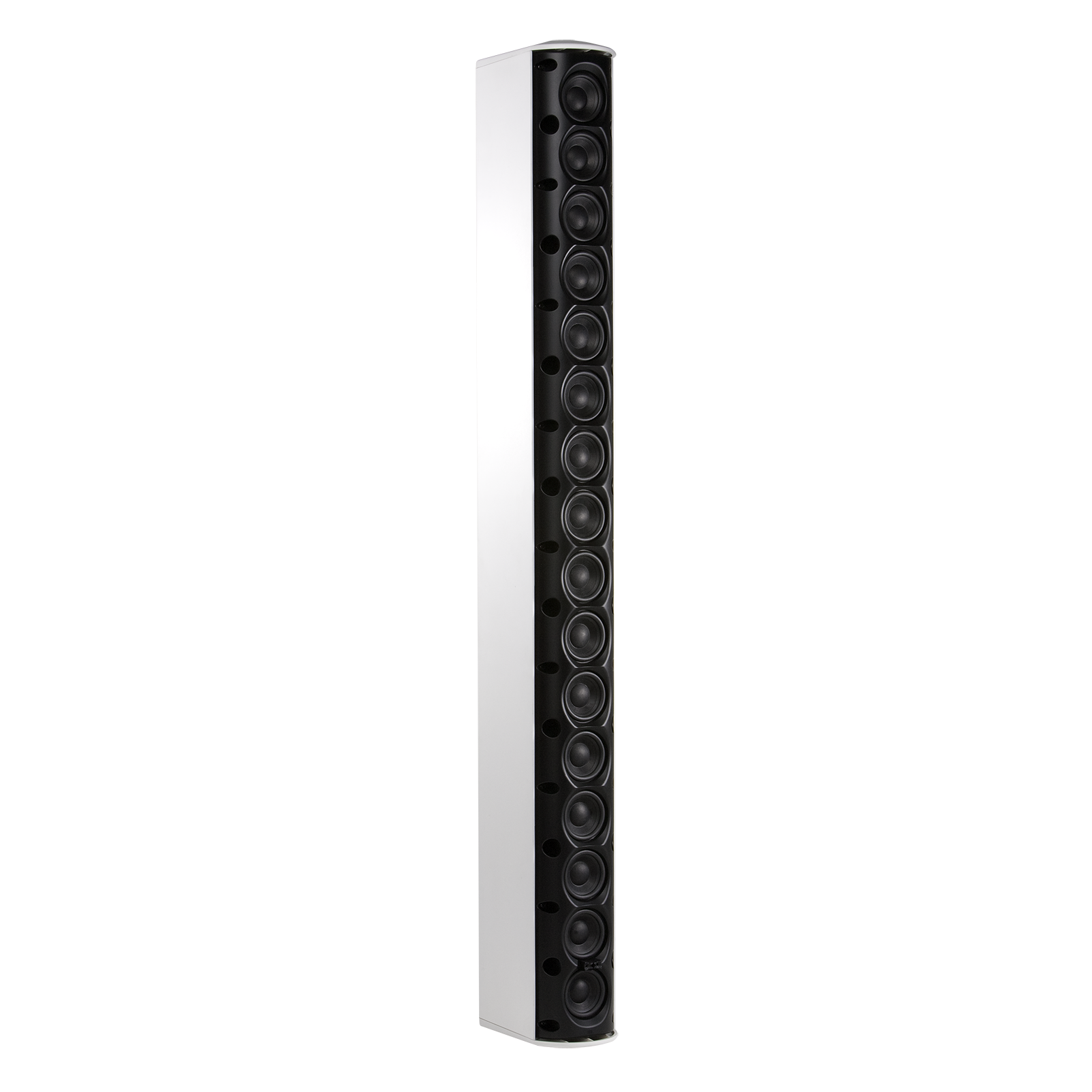

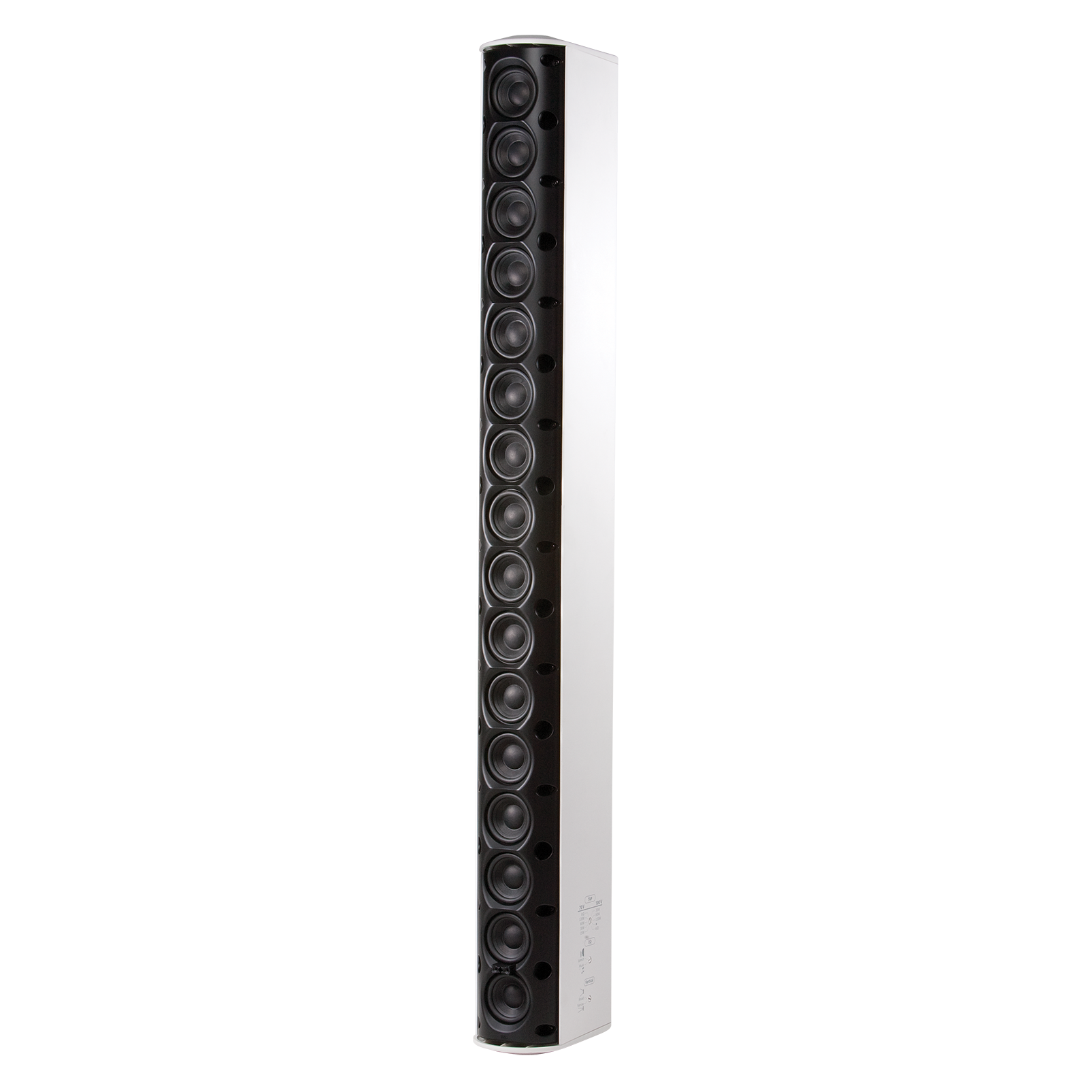

Sixteen 50 mm (2 in) Full-Range

Frequency Range (-10 dB)

120 Hz – 20 kHz

Coverage Pattern (Vertical Narrow Mode)

15° (2 kHz – 16 kHz) (±10°)

Coverage Pattern (Vertical Broad Mode)

40° (1 kHz – 16 kHz) (±10°)

Coverage Pattern (Horizontal)

150° (ave, 1 kHz – 4 kHz, ±20°)

Sensitivity (2.83V@ 1m) Narrow

(speech mode) 96 dB (2 kHz – 14 kHz ) ; (music mode) 93 dB (300 Hz – 18 kHz)

Sensitivity (2.83V@ 1m) Broad

(speech mode) 93 dB (2 kHz – 14 kHz) ; (music mode) 90 dB (300 Hz – 18 kHz)

EN54 Sensitivity (@ 4m)

76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)

Nominal Impedance 8 ohms (in Thru mode)

15w@70v; 30w@100v Tap = 333Ω ; 30w@70v; 60w@100v Tap = 167Ω ; 60w@70v; 120w@100v Tap = 83Ω ; 120w@70v; N/C@100v Tap = 42Ω

Power Capacity (8 ohm setting)

325 W (1300W peak), 2 hrs ; 200 W (800W peak), 100 hrs

Max SPL Narrow

(speech mode) 121 dB cont ave (127 peak) ; (music mode) 118 dB cont ave (124 peak)

Max SPL Broad

(speech mode) 118 dB cont ave (124 peak) ; (music mode) 115 dB cont ave (121 peak)

EN54 Max SPL (@ 4m)

92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)

70V/100V Transformer Taps

120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch

Reference Axis

Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.

Outdoor Capability

IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.

Insert Points

18 M6 insert points on back panel.

Mounting

Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount? 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

Safety Agency

EN54-24/2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.

Included Accessories

Swivel (pan) / tilt wall bracket ; MTC-PC2 terminal panel cover

Optional Accessories

MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

Dimensions

Height

1000 mm (39.4 in)

Width

98.5 mm (3.8 in)

Depth

153 mm (6.0 in)

Net Weight

7.2 kg (15.8 lb)

Design

Enclosure

Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
