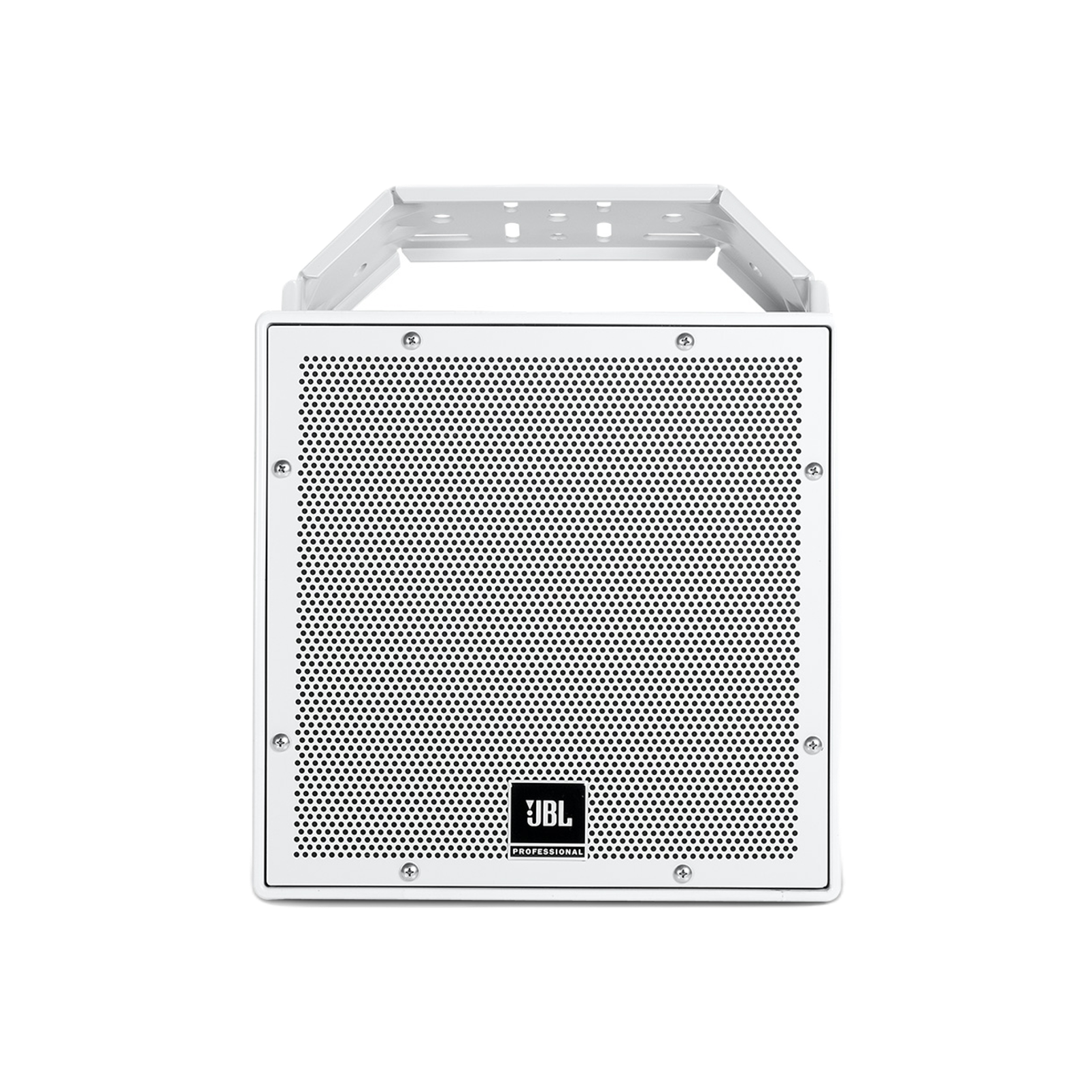

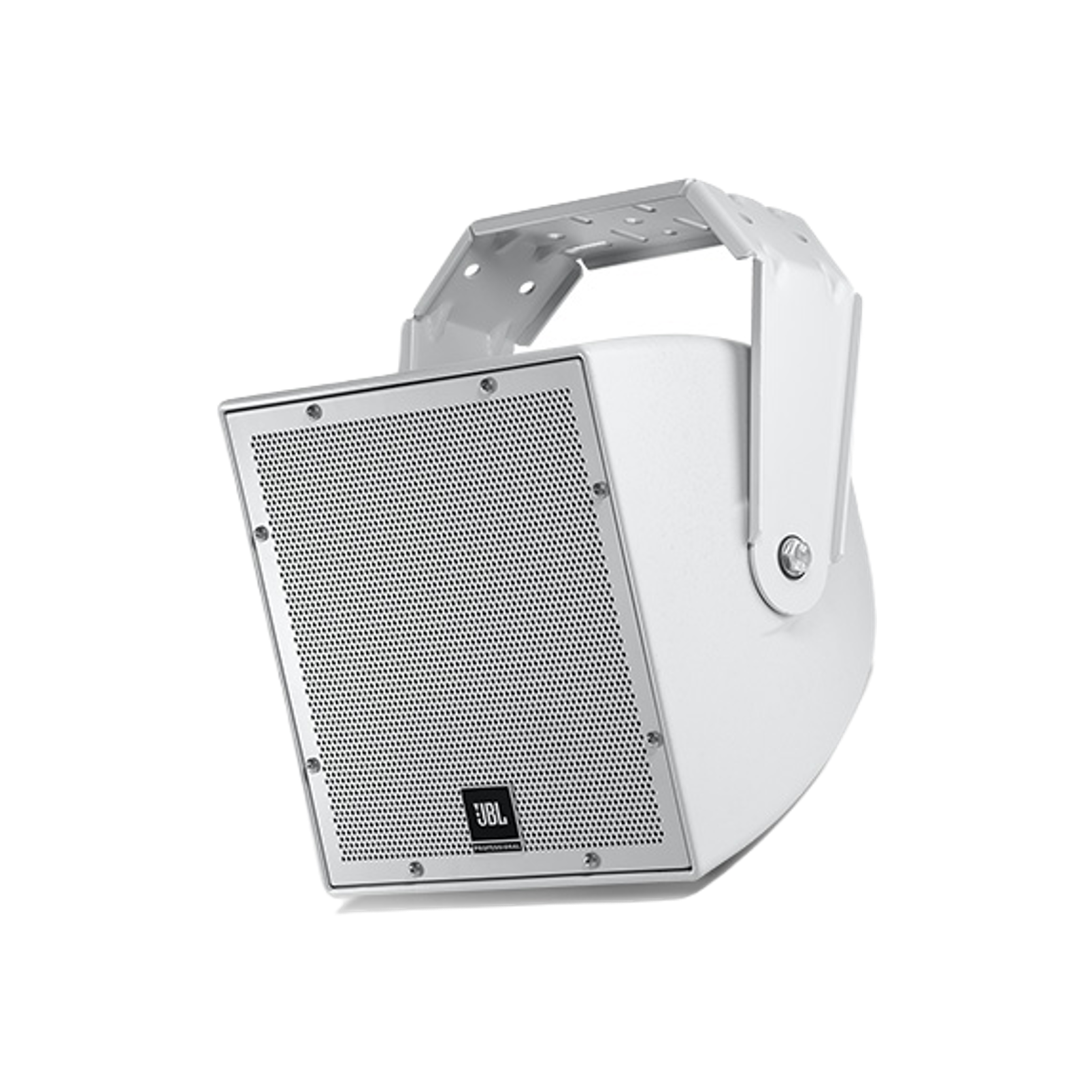

JBL AWC82 (B-Stock)

General Specifications

Frequency Range (-10dB)

80 Hz – 20 kHz

Frequency Response (±3 dB)

100 Hz – 20 kHz

Coverage Pattern

120° x 120°

Directivity Factor (Q)

8.1 (1 k – 16 kHz)

Directivity Index (DI)

8.4 dB (1k – 16 kHz)

System Power Rating

250 W 2 hrs. 200 W 100 hrs

Sensitivity (2.83V @ 1m)

94 dB (Ave. 100 Hz – 20 kHz)

Maximum SPL (1m)

Direct 8Ω = 118 dB (peaks of 124 dB) 200 W Tap = 117 dB

Crossover Network

1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

Nominal Impedance

8 ohms

Transformer Taps

70V = 200W, 100W, 50W, 25W ; 100V = 200W, 100W, 50W

LF Driver

Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil

HF Driver

25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling

HF Driver Protection

Minimum audibility SonicGuard? HF overload protection

Enclosure

ABS with Glass enclosure, heavily braced

Attachment

Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille

Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing

Input Connection

CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16) and 9.0 mm (0.36)

Environmental

IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).

Included Accessories

U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel

Suspension Attachment

Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Dimensions

Dimensions

300 x 300 x 305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back

Net Weight (each)

9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket

Shipping Weight

14.1 kg (31.0 lb)
