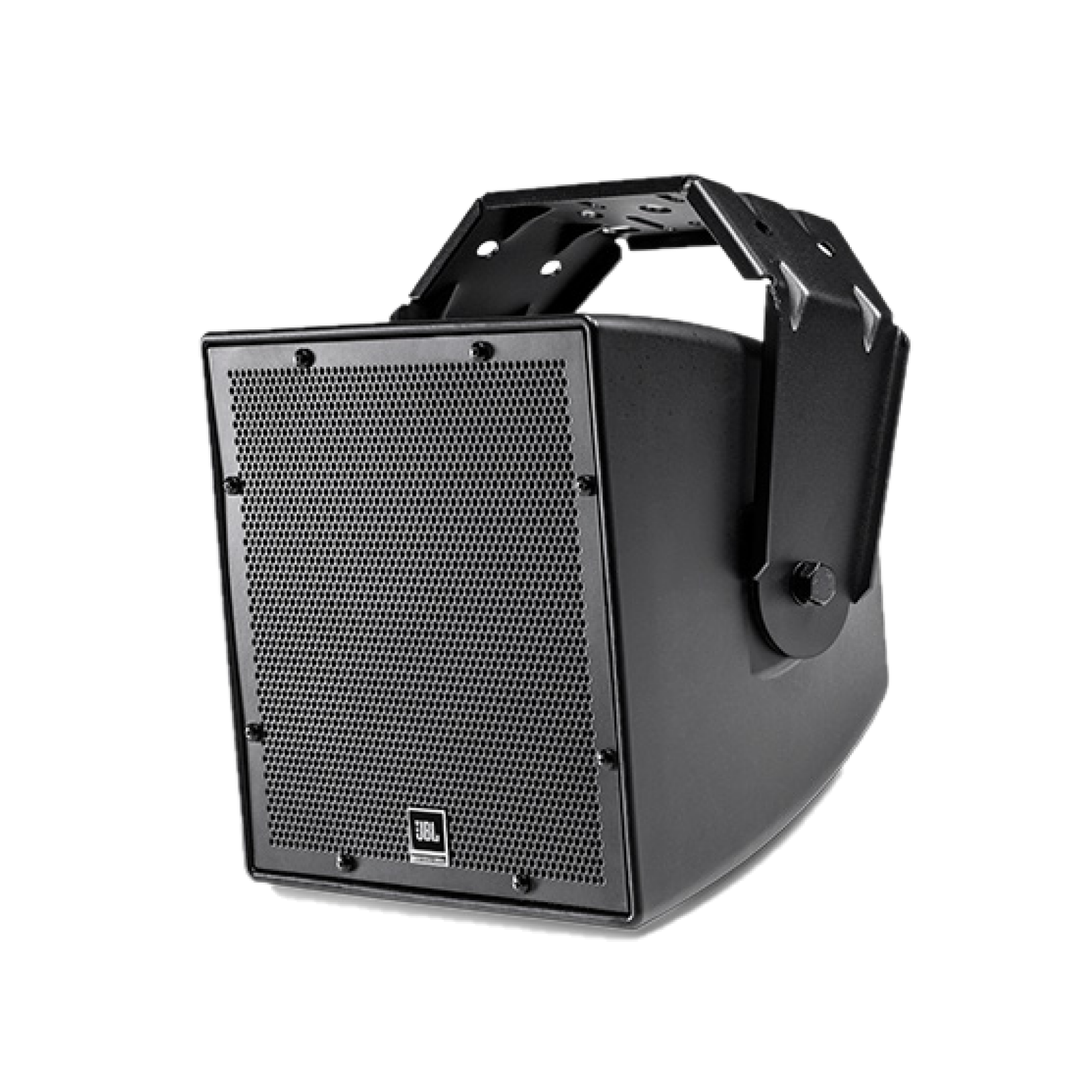

JBL AWC62

General Specifications

Frequency Range (-10dB)

70 Hz – 18 kHz

Frequency Response (±3 dB)

100 Hz – 16 kHz

Coverage Pattern

110o x 110o

Directivity Factor (Q)

7.2 (1 k – 16 kHz)

Directivity Index (DI)

7.9 dB (1 k – 16 kHz)

System Power Rating

175 W 2 hrs. 120 W 100 hrs (IEC rated)

Sensitivity (2.83V @ 1m)

92 dB (Ave. 100 Hz – 18 kHz)

Maximum SPL (1m)

Direct 8Ω = 114 dB (peaks of 120 dB) ; 120 W Tap = 112 dB

Crossover Network

1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF

Nominal Impedance

8 ohms

Transformer Taps

Transformer Taps 120W, 60W, 30W, 15W 100V

70V

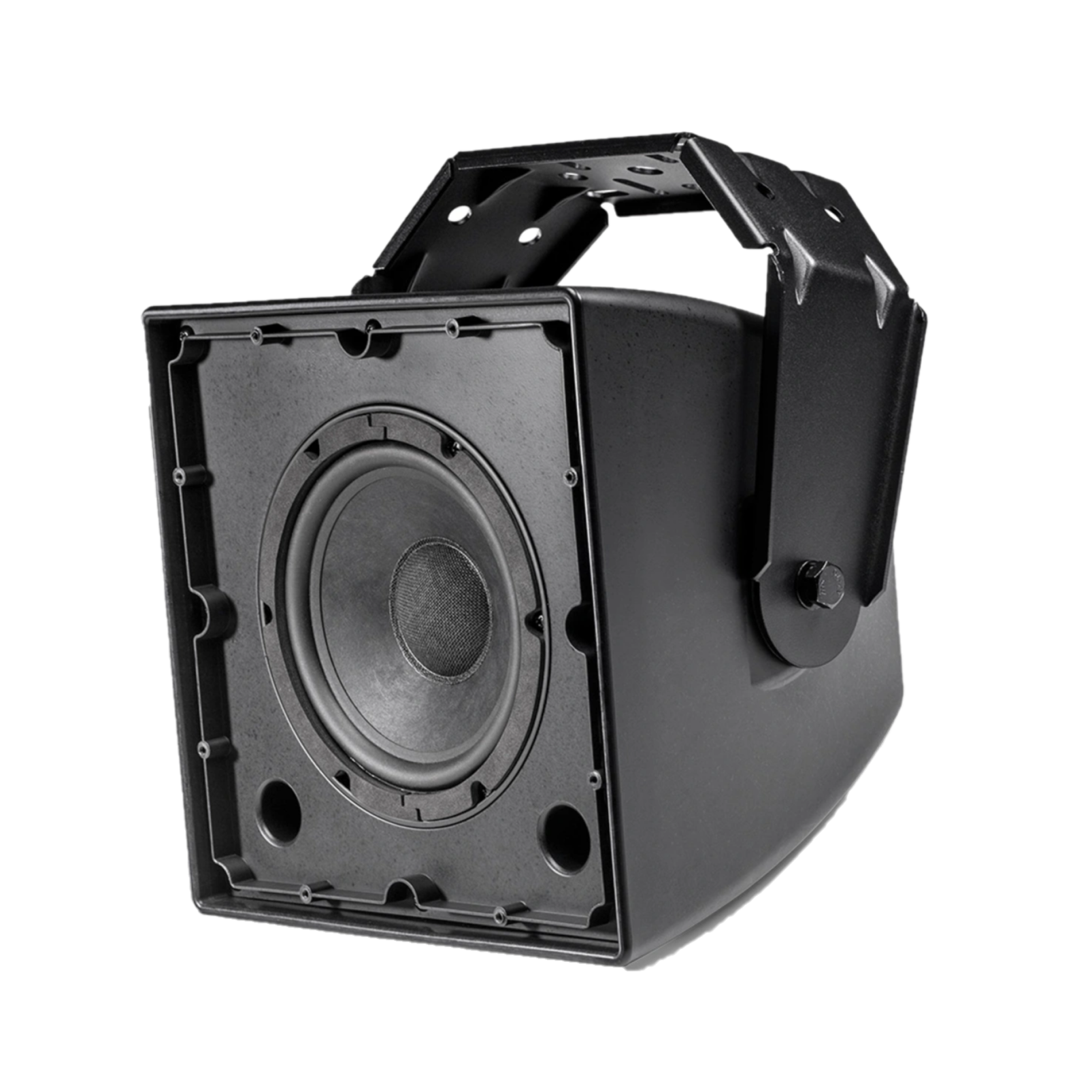

LF Driver

Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.

HF Driver

25 mm (1 in) diaphragm and voice coil diameter

HF Driver Protection

Minimum audibility SonicGuard? HF overload protection

Enclosure

ABS with Glass enclosure

Attachment

Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille

Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

Input Connection

CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”).

Environmental

IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).

Dimensions

Dimensions

259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet 288 mm (11.4 in) including gland nut 309 mm (12.2 in) including bracket extending to back

Net Weight (each)

6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket

Shipping Weight

8.8 kg (19.5 lb)
