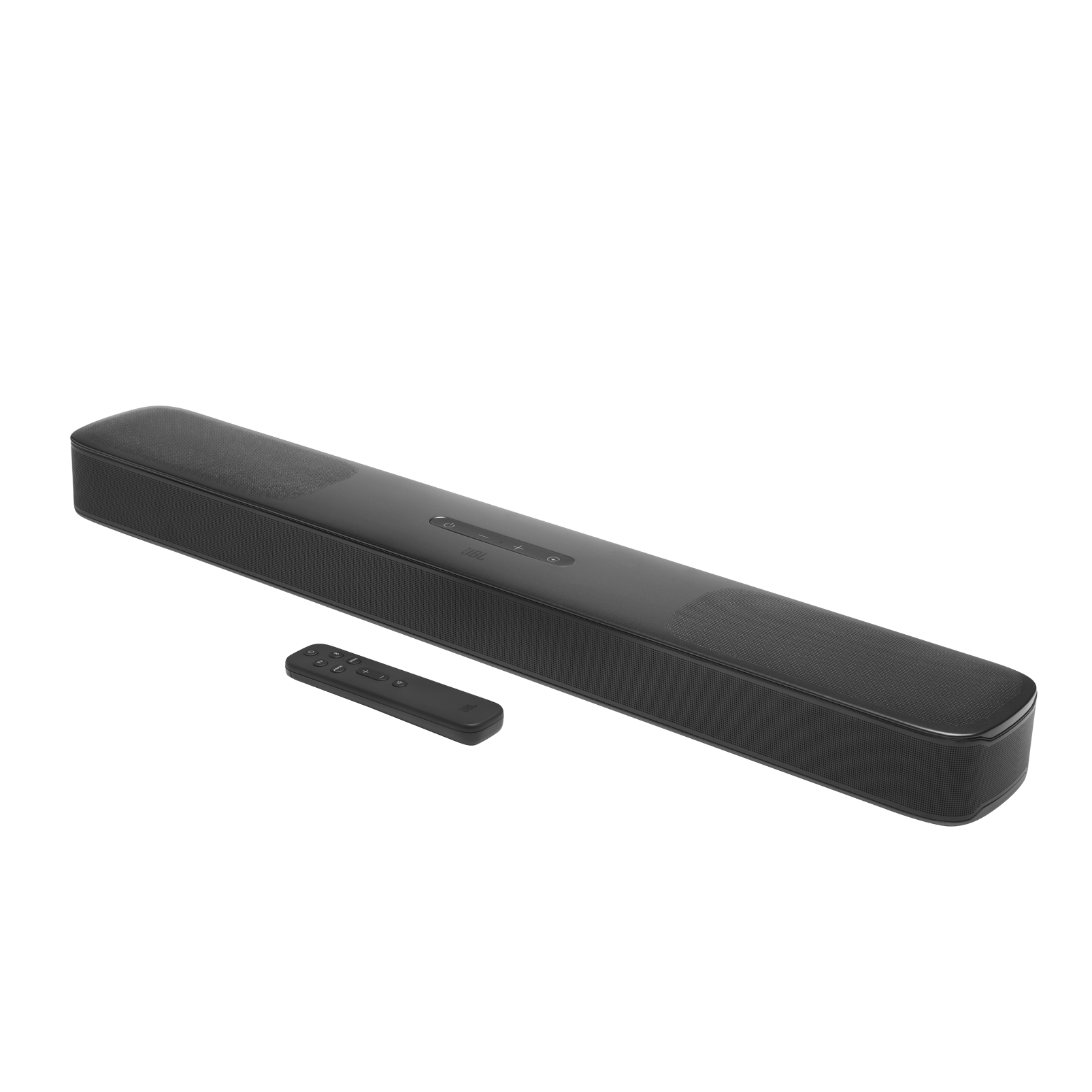

Bar 5.0 MultiBeam

General Specifications

Total speaker power output

250 W

Soundbar output power (Max. @THD 1%)

5 x 50 W

Transducer

5 x 48mm x 80mm racetrack drivers + 4 x 3 inches(75mm) Passive Radiators

Power supply

100 – 240V AC, ~ 50/60Hz

Audio Specifications

Max SPL

92 dBA

Frequency Response

50Hz – 20KHz

1 Optical, Bluetooth, Chromecast, AirPlay 2, Alexa MRM, USB

MP3 Codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 (USA only), Dolby Atmos, PCM

Dimensions

Dimensions (W x H x D)

709x 58x 101mm, 27.9x 2.3x 3.9

Weight

2.8kg

Control and Connection Specifications

Type A, USB rating

5V DC, 0.5A

USB Port

(*USB playback is available in US version. For other versions, USB is for Service only.)

Bluetooth? version

4.2

Bluetooth? profile

A2DP 1.2, AVRCP 1.5

Bluetooth? transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth? transmitter power

<10 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

<20dBm

5G Wi-Fi transmitter frequency range

5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power

<23dBm (EIRP)

Video Specifications

HDMI In

1

HDMI eARC

1

HDMI HDCP version

2.3
